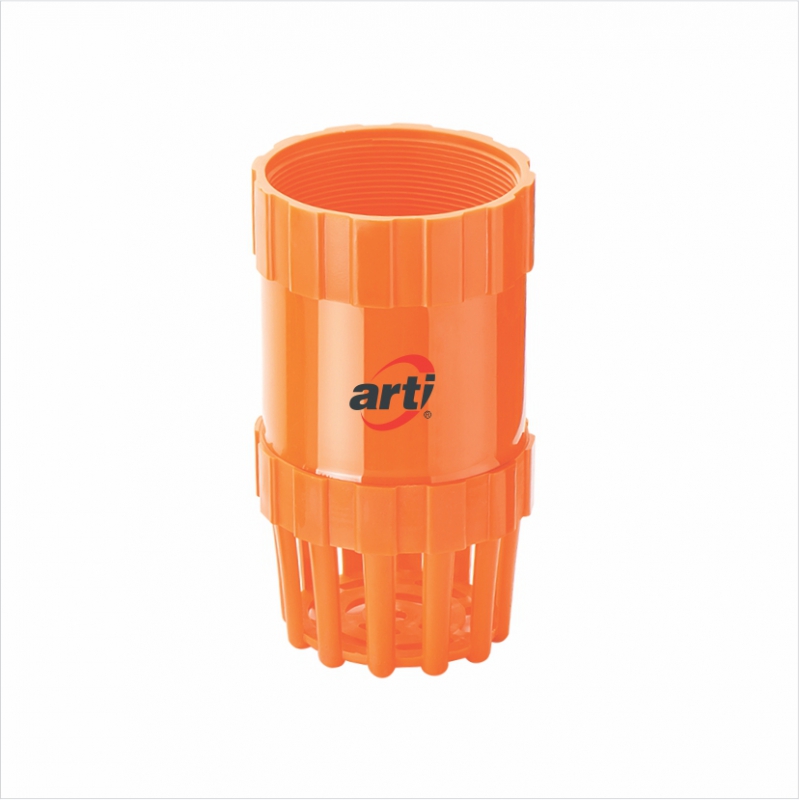

• Model : P-09
    Part : P.P. Bore Valve M.P. F.T.

    Model : P-09

    Model : P-09

    Bore Valve

    Part Description Standard Material
    Part Name P.P. Bore Valve M.P. F.T.
    Nominal Sizes 2",2.5",3",4"
    Body / Stranier Virgin Polypropelene Polymer
    Washer Thermo Plastic Elastomer
    Colour As Actual Orange
    Standard IS : 10805
    End Connections Screwed End Conforming to IS : 554
    Pressure Testing 0.02MPa to 0.5 Mpa
    Installation Vertical
  • Model : P-11
    Part : Nipple Bore Valve M.P. F.T.

    Model : P-11

    Model : P-11

    Bore Valve

    Part Description Standard Material
    Part Name Nipple Bore Valve M.P. F.T.
    Nominal Sizes 2.5",3"
    Body / Stranier Virgin Polypropelene Polymer
    Washer Thermo Plastic Elastomer
    Colour As Actual Orange
    Installation Vertical
  • Model : C-06
    Part : Cast Iron Bore Valve Major Plain

    Model : C-06

    Model : C-06

    Bore Valve

    Part Description Standard Material
    Part Name Cast Iron Bore Valve Major Plain
    Nominal Sizes 2",2.5",3",4"
    Body / Stranier Cast Iron Conforming to IS : 210
    Washer Thermo Plastic Elastomer
    Fastners Mild Steel
    Colour Brtuminous Grey Conforming to IS : 341
    Standard IS : 10805
    End Connections Screwed End Conforming to IS : 554
    Pressure Testing 0.02MPa to 0.5 Mpa
  • Model : C-07
    Part : Cast Iron Bore Reflux Valve Bright Plain

    Model : C-07

    Model : C-07

    Bore Valve

    Part Description Standard Material
    Part Name Cast Iron Bore Reflux Valve Bright Plain
    Nominal Sizes 2",2.5",3",4"
    Body / Stranier Cast Iron Conforming to IS : 210
    Washer Thermo Plastic Elastomer
    Fastners Mild Steel
    Colour Brtuminous Grey Conforming to IS : 341
    Standard IS : 10805
    End Connections Screwed End Conforming to IS : 554
    Pressure Testing 0.02MPa to 0.5 Mpa
  • Model : C-08
    Part : Cast Iron Bore Valve Major Super

    Model : C-08

    Model : C-08

    Bore Valve

    Part Description Standard Material
    Part Name Cast Iron Bore Valve Major Super
    Nominal Sizes 2",2.5",3"
    Body / Stranier Cast Iron Conforming to IS : 210
    Washer Thermo Plastic Elastomer
    Fastners Mild Steel
    Colour Brtuminous Grey Conforming to IS : 341
    End Connections Screwed End Conforming to IS : 554
  • Model : C-09
    Part : Cast Iron Reflux Valve Bright Super

    Model : C-09

    Model : C-09

    Bore Valve

    Part Description Standard Material
    Part Name Cast Iron Reflux Valve Bright Super
    Nominal Sizes 2",2.5",3"
    Body / Stranier Cast Iron Conforming to IS : 210
    Washer Thermo Plastic Elastomer
    Fastners Mild Steel
    Colour Brtuminous Grey Conforming to IS : 341
  • Model : P-12
    Part : Nipple Bore Valve M.P. S.T.

    Model : P-12

    Model : P-12

    Bore Valve

    Part Description Standard Material
    Part Name Nipple Bore Valve M.P. S.T.
    Nominal Sizes 2.5",3"
    Body / Stranier Virgin Polypropelene Polymer
    Washer Thermo Plastic Elastomer
    Colour As Actual Orange
    Spring SS 304
    Pressure Testing 0.02MPa to 0.5 Mpa
    Installation Vertical
  • Model : P-10
    Part : P.P. Bore Valve M.P. S.T.

    Model : P-10

    Model : P-10

    Bore Valve

    Part Description Standard Material
    Part Name P.P. Bore Valve M.P. S.T.
    Nominal Sizes 3",4"
    Body / Stranier Virgin Polypropelene Polymer
    Washer Thermo Plastic Elastomer
    Colour As Actual Orange
    Spring SS 304
    End Connections Screwed End Conforming to IS : 554
    Installation Vertical
