• Model : C-10

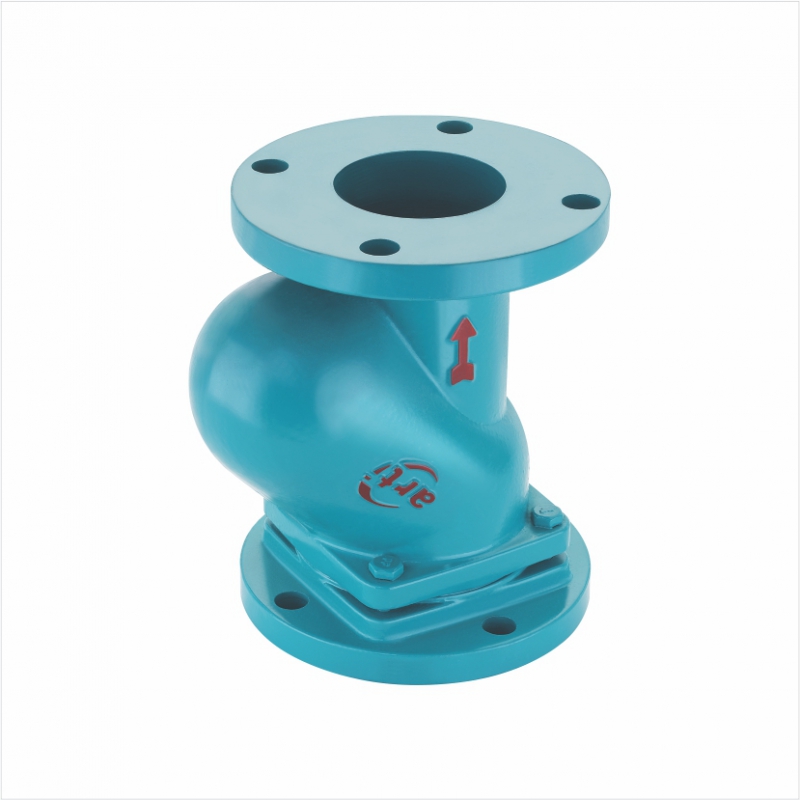

    Part : Flange Ball Check Valve (Non Return Valve)

    Model : C-10

    Model :C-10

    Non Return Valve

    Part Description Standard Material
    Part Name Flange Ball Check Valve (Non Return Valve)
    Nominal Sizes 2",2.5",3",4",5",6",8"
    Body / Stranier Cast Iron Conforming to IS : 210
    Washer Thermo Plastic Elastomer
    Ball Nitrile Reinforced
    Fastners Mild Steel
    Colour As Actual Blue
    Air Outlet Standard Size 1/2
    Installation Vertical / Horizontal

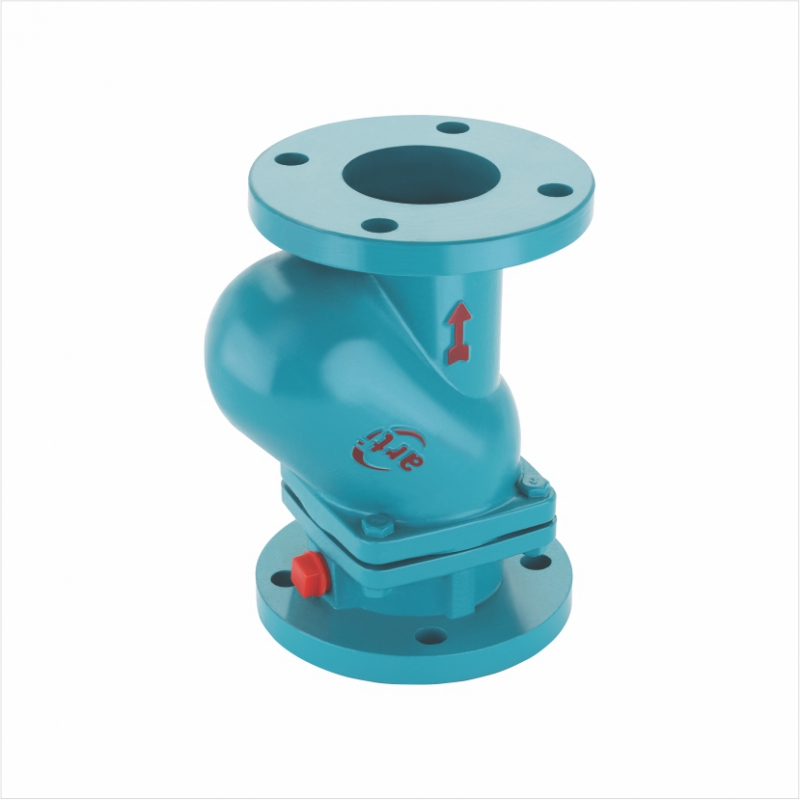

  • Model : C-11
    Part : Flange Ball Check Valve with Air (Non Return Valve)

    Model : C-11

    Model :C-11

    Non Return Valve

    Part Description Standard Material
    Part Name Flange Ball Check Valve with Air (Non Return Valve)
    Nominal Sizes 2",2.5",3",4",5",6",8"
    Body / Stranier Cast Iron Conforming to IS : 210
    Washer Thermo Plastic Elastomer
    Ball Nitrile Reinforced
    Fastners Mild Steel
    Colour As Actual Blue
    Standard As Per Company Standard
    End Connections Flange End
    Pressure Testing 0.02MPa to 0.5 Mpa
    Air Outlet Standard Size 1/2"
    Installation Vertical / Horizontal
  • Model : C-12

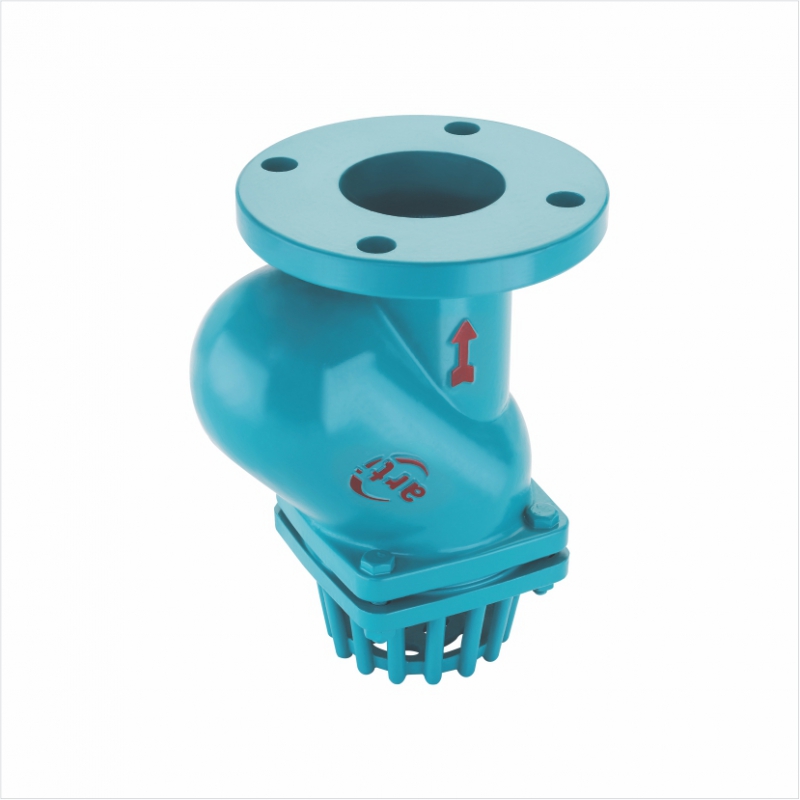

    Part : Flange Ball Foot Valve

    Model : C-12

    Model :C-12

    Non Return Valve

    Part Description Standard Material
    Part Name Flange Ball Foot Valve
    Nominal Sizes 2",2.5",3",4",5",6",8"
    Body / Stranier Cast Iron Conforming to IS : 210
    Washer Thermo Plastic Elastomer/ Brass Seat For 8"
    Ball Nitrile Reinforced
    Fastners Mild Steel/Stainless steel
    Colour As Actual Blue
    Standard As Per Company Standard
    End Connections Flange End
    Pressure Testing 0.02MPa to 0.5 Mpa
    Installation Vertical

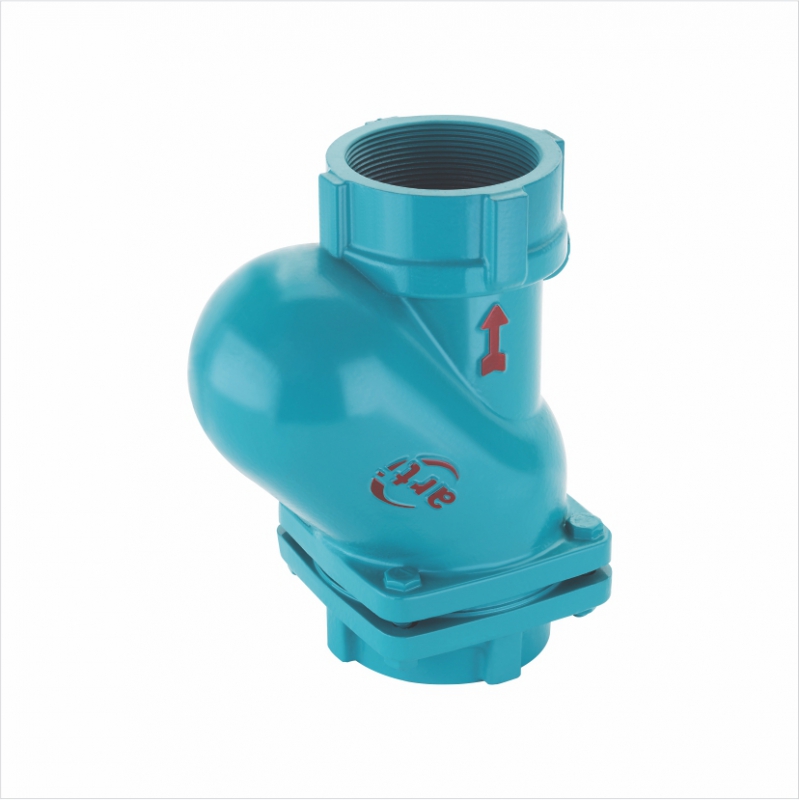

  • Model : C-13
    Part : Thread Ball Check Valve (Non Return Valve)

    Model : C-13

    Model :C-13

    Non Return Valve

    Part Description Standard Material
    Part Name Thread Ball Check Valve (Non Return Valve)
    Nominal Sizes 1",1.25",1.5",2",2.5",3",4",5",6"
    Body / Stranier Cast Iron Conforming to IS : 210
    Washer Thermo Plastic Elastomer
    Ball Nitrile Reinforced
    Fastners Mild Steel
    Colour As Actual Blue
    Standard IS : 10805
    End Connections Screwed End Conforming to IS : 158
    Pressure Testing 0.02MPa to 0.5 Mpa
    Installation Vertical as well as horizontal

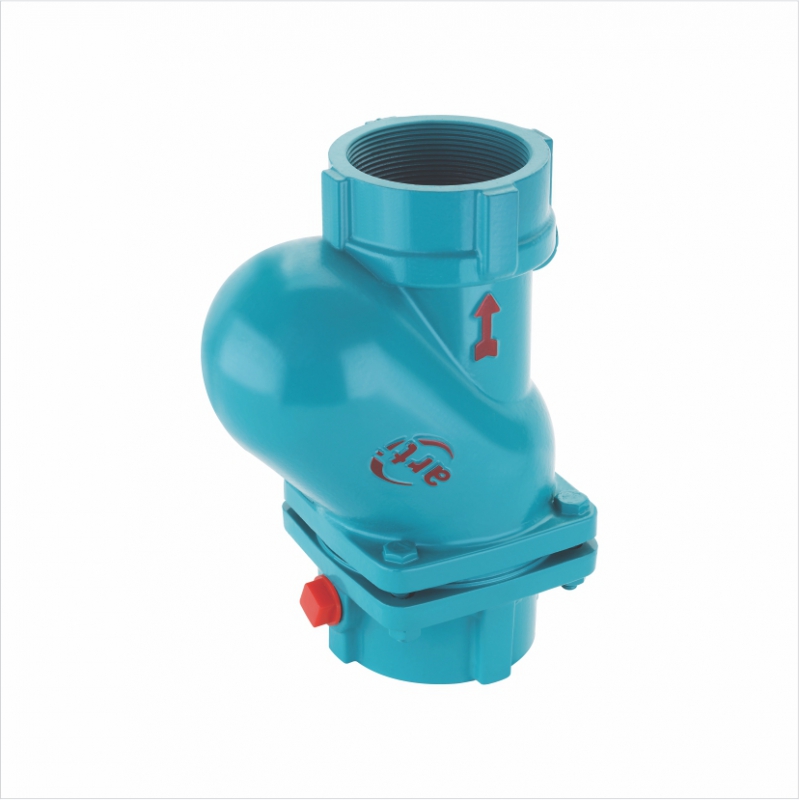

  • Model : C-14
    Part : Thread Ball Check Valve with Air (Non Return Valve)

    Model : C-14

    Model :C-14

    Non Return Valve

    Part Description Standard Material
    Part Name Thread Ball Check Valve with Air (Non Return Valve)
    Nominal Sizes 1",1.25",1.5",2",2.5",3",4",5",6"
    Body / Stranier Cast Iron Conforming to IS : 210
    Washer Thermo Plastic Elastomer
    Ball Nitrile Reinforced
    Fastners Mild Steel
    Colour As Actual Blue
    Standard As Per Company Standard
    End Connections Screwed End Conforming to IS : 158
    Pressure Testing 0.02MPa to 0.5 Mpa
    Air Outlet Standard Size 1/2
    Installation Vertical as well as horizontal
  • Model : C-15

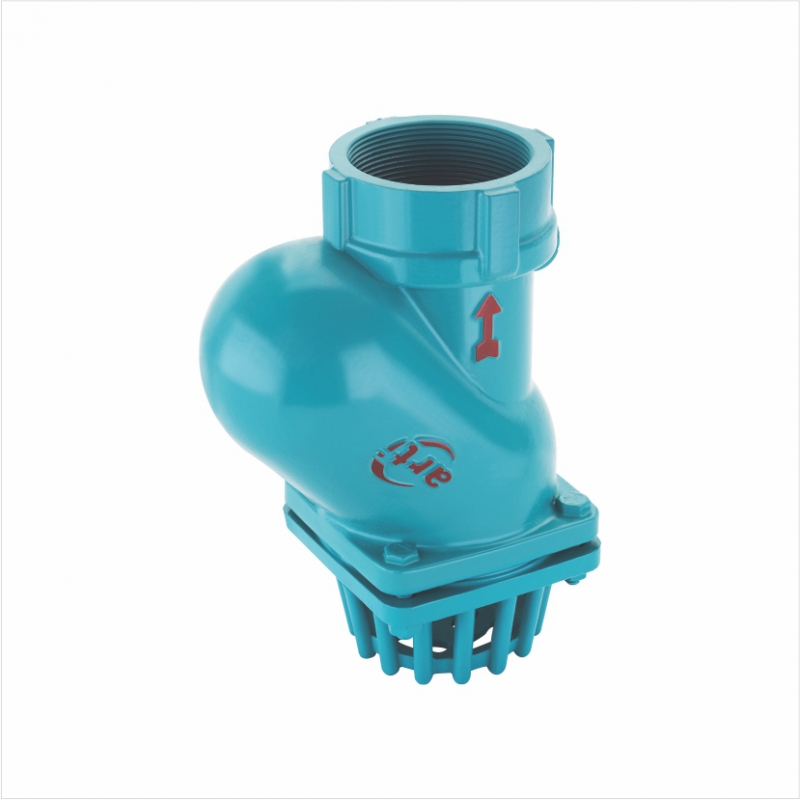

    Part : Thread Ball Foot Valve

    Model : C-15

    Model :C-15

    Non Return Valve

    Part Description Standard Material
    Part Name Thread Ball Foot Valve
    Nominal Sizes 1",1.25",1.5",2",2.5",3",4",5",6"
    Body / Stranier Cast Iron Conforming to IS : 210
    Washer Thermo Plastic Elastomer
    Ball Nitrile Reinforced
    Fastners Mild Steel
    Colour As Actual Blue
    Standard IS : 10805
    End Connections Screwed End Conforming to IS : 158
    Pressure Testing 0.02MPa to 0.5 Mpa
    Installation Vertical
  • Model : C-16

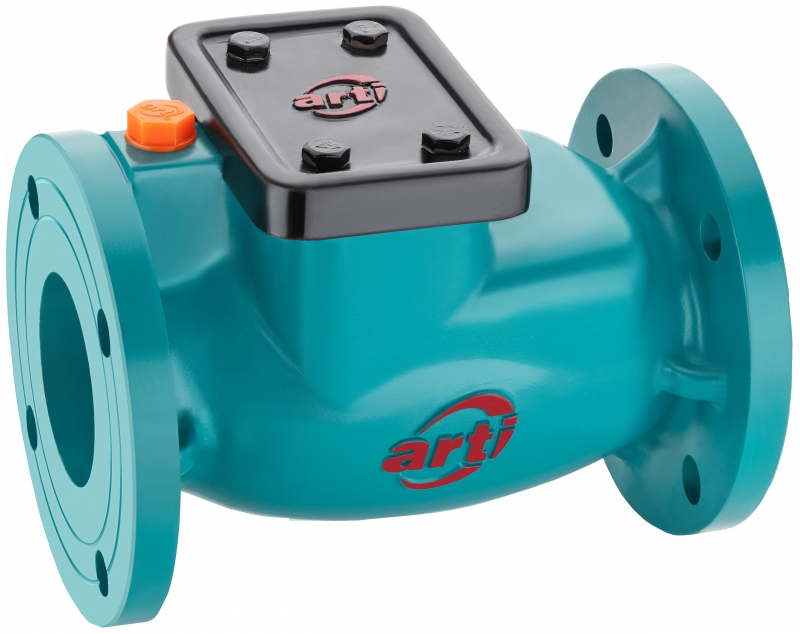

    Part : Flange Flap Non Return Valve

    Model : C-16

    Model :C-16

    Non Return Valve

    Part Description Standard Material
    Part Name Flange Flap Non Return Valve
    Nominal Sizes 2",2.5",3",4"
    Body / Stranier Cast Iron
    Washer Natural Rubber
    Fastners Mild Steel
    Colour As Actual Blue
    End Connections Flange End Conforming to IS : 10805
    Air Outlet Standard Size 1/2
    Installation Vertical as well as horizontal
  • Model : P-13

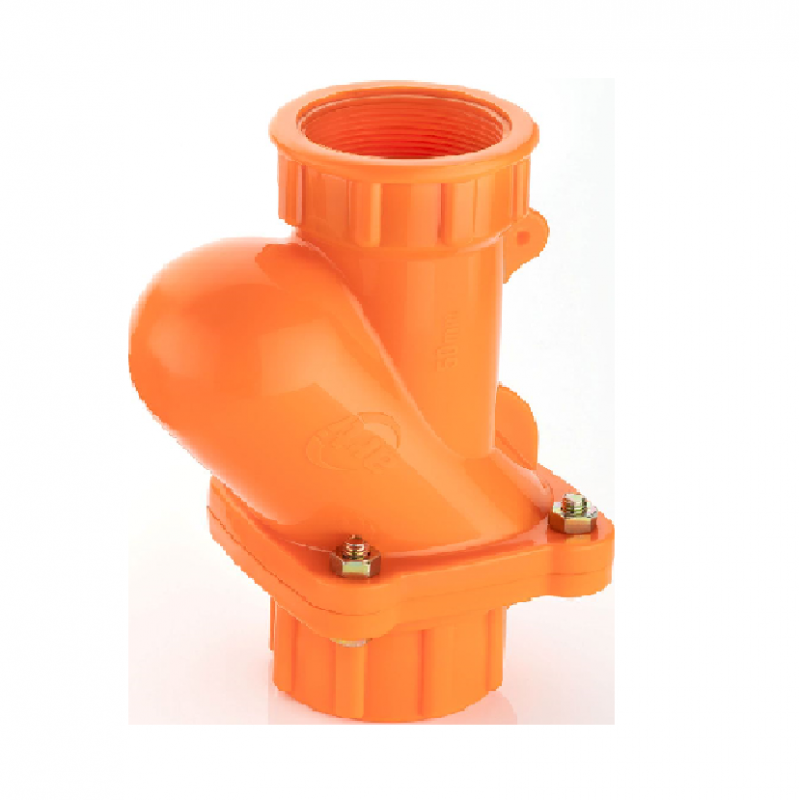

    Part : P.P. Thread ball Air Check Valve

    Model : P-13

    Model :P-13

    Non Return Valve

    Part Description Standard Material
    Part Name P.P. Thread ball Air Check Valve
    Nominal Sizes 2"
    Body / Stranier Virgin Polypropelene Polymer
    Fastners Stainless Steel
    Colour As Actual Orange
    Standard IS : 10805
    End Connections Screwed End Conforming to IS : 554
    Pressure Testing 0.02MPa to 0.5 Mpa
    Installation Vertival / Horizontal
  • Model : P-14
    Part : P.P. Thread Ball Foot Valve

    Model : P-14

    Model :P-14

    Non Return Valve

    Part Description Standard Material
    Part Name P.P. Thread Ball Foot Valve
    Nominal Sizes 2"
    Body / Stranier Virgin Polypropelene Polymer
    Fastners Stainless Steel
    Colour As Actual Orange
    Standard IS : 10805
    End Connections Screwed End Conforming to IS : 554
    Pressure Testing 0.02MPa to 0.5 Mpa
    Installation Vertival / Horizontal
  • Model : C-17
    Part : Thread Flange Ball Air Check Valve

    Model : C-17

    Model :C-17

    Non Return Valve

    Part Description Standard Material
    Part Name Thread Flange Ball Air Check Valve
    Nominal Sizes
    Body / Stranier Cast Iron Conforming to IS : 210
    Washer Thermo Plastic Elastomer
    Ball Nitrile Reinforced
    Fastners Mild Steel
    Colour As Actual Blue
    Air Outlet Standard Size 1/2
    Installation Vertical as well as horizontal
  • C-18
    Part : Flange Thread Ball Air Check Valve

    C-18

    Model :C-18

    Non Return Valve

    Part Description Standard Material
    Part Name Flange Thread Ball Air Check Valve
    Nominal Sizes
    Body / Stranier Cast Iron Conforming to IS : 210
    Washer Thermo Plastic Elastomer
    Ball Nitrile Reinforced
    Fastners Mild Steel
    Colour As Actual Blue
    Air Outlet Standard Size 1/2
    Installation Vertical as well as horizontal
  • Model : S-01

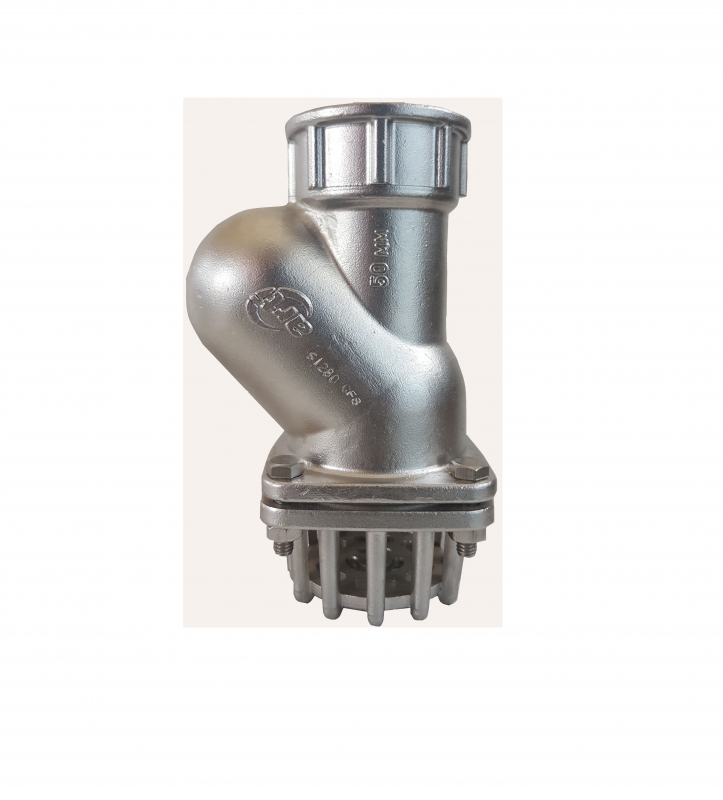

    Part : Stainless Steel Thread Ball Foot Valve

    Model : S-01

    Model :S-01

    Non Return Valve

    Part Description Standard Material
    Part Name Stainless Steel Thread Ball Foot Valve
    Nominal Sizes
    Body / Stranier Stainless Steel
    Washer Thermo Plastic Elastomer
    Fastners Stainless Steel
  • Model : S-02
    Part : Stainless Steel Flange Ball Foot Valve

    Model : S-02

    Model :S-02

    Non Return Valve

    Part Description Standard Material
    Part Name Stainless Steel Flange Ball Foot Valve
    Nominal Sizes
    Body / Stranier Stainless Steel
    Washer Thermo Plastic Elastomer
    Ball Nitrile Reinforced
    Fastners Stainless Steel
